Doomsday Device



Doomsday Device Release status: stable [box doku]
Description	Ein Doomsday Device fürs Space
Author(s)	phip
Platform	Arduino
License	GPL-3
Download	Github

Das Doomsday Device ist ein Arduino gesteuertes Dingens, welches die Zeit bis zum Doomsday Anzeigt. Es wurde komplett aus Einzelteilen hergestellt, die im Space herumflogen.

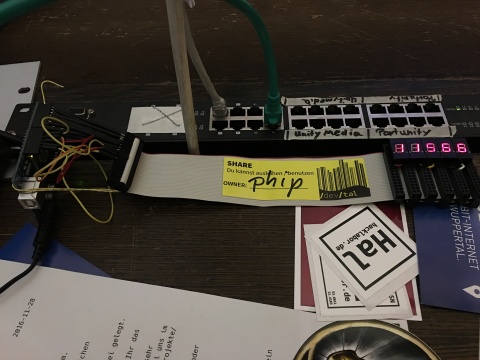

Das Doomsday Device am 2016-12-15

Mt einem Floppy-Flachbandkabel wurde gleichzeitig ein knuffiges Steckbrett realisiert.

Der Quellcode des Doomsday Devices:

/*
 * doomsday.c - small, shiny Doomsday Device Controller
 * Copyright (C) 2016-2017, phip (/dev/tal e. V.)
 *
 * This program is free software: you can redistribute it and/or modify
 * it under the terms of the GNU General Public License as published by
 * the Free Software Foundation, either version 3 of the License, or
 * (at your option) any later version.
 *
 * This program is distributed in the hope that it will be useful,
 * but WITHOUT ANY WARRANTY; without even the implied warranty of
 * MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
 * GNU General Public License for more details.
 *
 * You should have received a copy of the GNU General Public License
 * along with this program.  If not, see <http://www.gnu.org/licenses/>.
 */


char a =   0;  //  a
char b =   1;  // f b
char c =   4;  //  g
char d =   7;  // e c
char e =   8;  //  d
char f =   2;  //
char g =   3;  // see <https://de.wikipedia.org/wiki/Segmentanzeige>
char ld =  6;  //
char rd =  5;  //
enum {nn = 5}; //

char l[nn] = {9, 10, 11, 12, 13};
unsigned int del = 1000;
unsigned int plexdel = 1;

void nOut(char n) {
  switch(n) {
    case 0:
    //default:
      digitalWrite(a,  LOW);
      digitalWrite(b,  LOW);
      digitalWrite(c,  LOW);
      digitalWrite(d,  LOW);
      digitalWrite(e,  LOW);
      digitalWrite(f,  LOW);
      digitalWrite(g,  HIGH);
      digitalWrite(ld, HIGH);
      digitalWrite(rd, HIGH);
      break;

    case 1:
      digitalWrite(a,  HIGH);
      digitalWrite(b,  LOW);
      digitalWrite(c,  LOW);
      digitalWrite(d,  HIGH);
      digitalWrite(e,  HIGH);
      digitalWrite(f,  HIGH);
      digitalWrite(g,  HIGH);
      digitalWrite(ld, HIGH);
      digitalWrite(rd, HIGH);
      break;

    case 2:
      digitalWrite(a,  LOW);
      digitalWrite(b,  LOW);
      digitalWrite(c,  HIGH);
      digitalWrite(d,  LOW);
      digitalWrite(e,  LOW);
      digitalWrite(f,  HIGH);
      digitalWrite(g,  LOW);
      digitalWrite(ld, HIGH);
      digitalWrite(rd, HIGH);
      break;

    case 3:
      digitalWrite(a,  LOW);
      digitalWrite(b,  LOW);
      digitalWrite(c,  LOW);
      digitalWrite(d,  LOW);
      digitalWrite(e,  HIGH);
      digitalWrite(f,  HIGH);
      digitalWrite(g,  LOW);
      digitalWrite(ld, HIGH);
      digitalWrite(rd, HIGH);
      break;

    case 4:
      digitalWrite(a,  HIGH);
      digitalWrite(b,  LOW);
      digitalWrite(c,  LOW);
      digitalWrite(d,  HIGH);
      digitalWrite(e,  HIGH);
      digitalWrite(f,  LOW);
      digitalWrite(g,  LOW);
      digitalWrite(ld, HIGH);
      digitalWrite(rd, HIGH);
      break;

    case 5:
      digitalWrite(a,  LOW);
      digitalWrite(b,  HIGH);
      digitalWrite(c,  LOW);
      digitalWrite(d,  LOW);
      digitalWrite(e,  HIGH);
      digitalWrite(f,  LOW);
      digitalWrite(g,  LOW);
      digitalWrite(ld, HIGH);
      digitalWrite(rd, HIGH);
      break;

    case 6:
      digitalWrite(a,  LOW);
      digitalWrite(b,  HIGH);
      digitalWrite(c,  LOW);
      digitalWrite(d,  LOW);
      digitalWrite(e,  LOW);
      digitalWrite(f,  LOW);
      digitalWrite(g,  LOW);
      digitalWrite(ld, HIGH);
      digitalWrite(rd, HIGH);
      break;

    case 7:
      digitalWrite(a,  LOW);
      digitalWrite(b,  LOW);
      digitalWrite(c,  LOW);
      digitalWrite(d,  HIGH);
      digitalWrite(e,  HIGH);
      digitalWrite(f,  HIGH);
      digitalWrite(g,  HIGH);
      digitalWrite(ld, HIGH);
      digitalWrite(rd, HIGH);
      break;

    case 8:
      digitalWrite(a,  LOW);
      digitalWrite(b,  LOW);
      digitalWrite(c,  LOW);
      digitalWrite(d,  LOW);
      digitalWrite(e,  LOW);
      digitalWrite(f,  LOW);
      digitalWrite(g,  LOW);
      digitalWrite(ld, HIGH);
      digitalWrite(rd, HIGH);
      break;

    case 9:
      digitalWrite(a,  LOW);
      digitalWrite(b,  LOW);
      digitalWrite(c,  LOW);
      digitalWrite(d,  LOW);
      digitalWrite(e,  HIGH);
      digitalWrite(f,  LOW);
      digitalWrite(g,  LOW);
      digitalWrite(ld, HIGH);
      digitalWrite(rd, HIGH);
      break;
  }
}

void getOut(unsigned int n){
  char z[nn] = {char(n/10000), char((n/1000)%10), char((n/100)%10), char((n/10)%10), char(n%10)};

  unsigned int countadd = del/plexdel;
  unsigned int count = 0;

  while(count<del) {
    for (char i=0; i<nn; i++){
      for (char j=0; j<nn; j++){
        if (i != j) digitalWrite(l[j], LOW);
        else digitalWrite(l[j], HIGH);
      }
      nOut(z[i]);
      delay(plexdel);
      count++;
    }
  }
}

void setup() {
  pinMode(a,  OUTPUT);
  pinMode(b,  OUTPUT);
  pinMode(c,  OUTPUT);
  pinMode(d,  OUTPUT);
  pinMode(e,  OUTPUT);
  pinMode(f,  OUTPUT);
  pinMode(g,  OUTPUT);
  pinMode(ld, OUTPUT);
  pinMode(rd, OUTPUT);

  for (char i=0; i<nn; i++){
    pinMode(l[i], OUTPUT);
    digitalWrite(l[0], LOW);
  }

  digitalWrite(a,  LOW);
  digitalWrite(b,  LOW);
  digitalWrite(c,  LOW);
  digitalWrite(d,  LOW);
  digitalWrite(e,  LOW);
  digitalWrite(f,  LOW);
  digitalWrite(g,  LOW);
  digitalWrite(ld, LOW);
  digitalWrite(rd, LOW);
}

void loop() {
  unsigned int i = 21600;
  while (i>0) {
    getOut(i);
    i--;
  }
  getOut(0);
}

Auch auf Github zu haben.

Dieses Projekt zeigt auch, was Menschen vollbringen können, wenn es ein mal kurz langweilig wird und sie eigentlich Mal eben die Welt retten sollten.
